DTH Drill Bit for Low Pressure DTH Hammer
Product Details:
Bit Face Shape Selection:
Description:
1. Size range of medium and high pressure DTH rock bit: 80mm-254mm
2. DTH rock bit face shapes: Flat, Concave, Convex
3. DTH bit button shapes: Spherical, Ballistic, Parabolic
4. Application of DTH rock bit: They are widely used for mine, quarry, road construction for the drilling and blasting work, water well drilling, slope protection, anchoring, etc.
5. Bit size and buttons can be customized.
Applications:
1. mine and quarry
2. road construction for the drilling and blasting work
3. water well drilling
4. slope protection
Specifications:
----Type and Technical Specification of Bits for Low Pressure DTH Hammers ▼
| Type | Number of Air hole | DIa.(mm) | Weight(kg) | Gauge Button | Front Button | Matching DTH Hammer | | GL65PQ | 1 | 68-72 | 1.5 | 4×ф12 | 3×ф12 | GL65 | | GL75PQ | 3 | 75-77 | 2.4 | 5×ф12 | 3×ф12 | GL70 | | GL76PQ | 2 | 76-78 | 2.5 | 5×ф12 | 3×ф12 | GL76 | | GL76-78 | 2 | 78-82 | 2.6 | 5×ф12 | 3×ф12 | | GL80PQ | 3 | 82-84 | 3 | 5×ф12 | 6×ф12 | GL80 /80X | | GL90A | 3 | 90-95 | 3.6 | 6×ф14 | 4×ф12 | | GL80XD-90 | 3 | 90-95 | 3.4 | 6×ф12 | 4×ф12 | GL80XD | | GL80-II-80 | 3 | 80-82 | 3 | 5×ф12 | 4×ф12 | GL80-II | | GL90B | 3 | 90-95 | 3.8 | 6×ф14 | 4×ф12 | | | GL90T1 | 2 | 90-95 | 3.6 | 6×ф14 | 1×ф12 | | 3×ф12 | | GL90T2 | 2 | 90-95 | 3.8 | 6×ф14 | 4×ф12 | | GL90T3J | 3 | 90-95 | 3.6 | 6×ф14 | 4×ф12 | | GL90T5 | 2 | 90-95 | 3.6 | 5×ф14 | 4×ф12 | | GL90-100 | 3 | 100-105 | 4 | 6×ф14 | 5×ф12 | | GL90-105 | 3 | 105-110 | 4.2 | 6×ф14 | 5×ф12 | | GL90-110 | 3 | 110-115 | 4.5 | 8×ф14 | 3×ф12 | | GL90-120 | 3 | 120-125 | 5 | 8×ф14 | 3×ф12 | | GL90-130 | 3 | 130-135 | 6.8 | 9×ф14 | 4×ф12 | | GL110-110 | 3 | 110-115 | 6.1 | 6×ф14 | 5×ф12 | | | GL110-115 | 3 | 110-115 | 6.3 | 6×ф14 | 5×ф12 | | GL110-120 | 3 | 120-125 | 7 | 6×ф14 | 6×ф12 | | GL110-125 | 3 | 125-130 | 7.1 | 6×ф14 | 7×ф12 | | GL110-130 | 3 | 130-135 | 7.3 | 6×ф14 | 7×ф12 | | GL110-135 | 3 | 135-140 | 8 | 6×ф14 | 7×ф12 | | GL110-140 | 3 | 140-145 | 8.2 | 6×ф14 | 8×ф12 | | GL110-150 | 3 | 150-155 | 9 | 6×ф14 | 8×ф12 | | GL150-155 | 3 | 155-160 | 16.3 | 15×ф16 | 4×ф14 | GL150 | | GL150-165 | 3 | 160-165 | 17.3 | 15×ф16 | 5×ф14 | | GL150-185 | 3 | 180-185 | 19.6 | 15×ф16 | 6×ф14 | | GL150-200 | 3 | 200-205 | 23 | 9×ф16 | 12×ф14 | | GL170-175 | 3 | 175-180 | 22.8 | 15×ф16 | 8×ф14 | GL170 | | GL170-185 | 3 | 185-190 | 23.24 | 15×ф16 | 8×ф14 | | GL170-195 | 3 | 195-198 | 24 | 15×ф16 | 10×ф14 | | GL170-200 | 3 | 200-203 | 25.8 | 15×ф16 | 9×ф14 | | GL170-210 | 3 | 210-213 | 26.5 | 12×ф16 | 6×ф14 | | 6×ф16 | | GL170-220 | 3 | 220-223 | 28.5 | 15×ф16 | 11×ф14 | | GL170-230 | 3 | 230-233 | 32 | 15×ф16 | 12×ф14 | | GL170-240 | 3 | 240-243 | 36 | 21×ф16 | 6×ф14 | | GL170-250 | 3 | 250-253 | 45 | 15×ф16 | 4×ф14 | | |

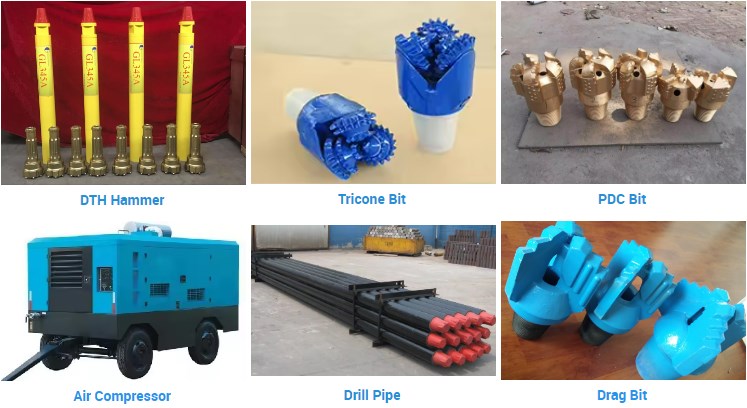

Related Product
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

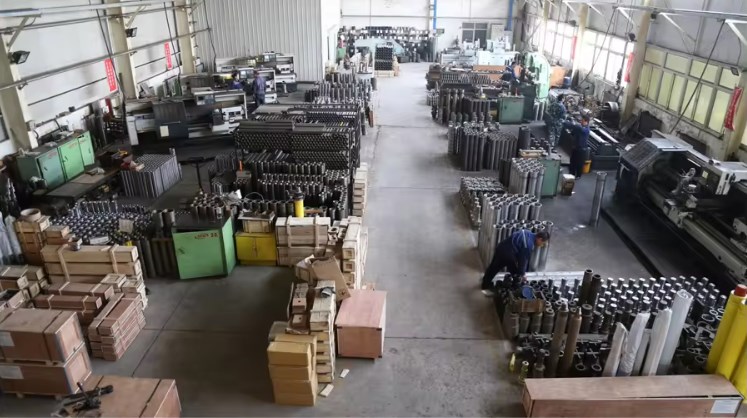

Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH Hammer. Moreover, we have drilling equipment like rigs, mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100% advance payment after purchase order by T/T for small orders.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver 3-5 days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
