High Efficiency Tricone Rock Bit 215.9mm IADC 537 for water well
1.Description:
-The 537 TCI bits are used to dsoft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds.
-The drill bit should go down the well according the prescribed operating procedures. After the drill bit is in contact with the bottom of the well, it must be lightly pressed and slowly rotated. Gradually increase to normal WOB drilling.
-During the drilling process, the operation should be stable, and the drilling should be sent evenly to avoid drilling.
-The storage and transportation of the drill bit should be placed in a wooden box and a soft material packaging box to avoid damage.
-The drill bit should be keep dry, ventilated, and protected from sunlight and rain. Stored under these conditions, the shelf life is five years.
2.Applications:
The tricone drill bit is the most popular drilling bit in the world,it can be widely used for Oil&Gas Drilling,Mining,WaterWell,Geological Exploration areas.
3.Specifications:
| Bit size | API thread | recommended torque | | in | mm | in | KN.M | | 6 | 152.4 | 3 1/2 | 9. 5-12.2 | | 6 1/8 | 155.6 | 3 1/2 | 9. 5-12.2 | | 6 1/4 | 158.8 | 3 1/2 | 9. 5-12.2 | | 6 1/2 | 165.1 | 3 1/2 | 9. 5-12.2 | | 6 5/8 | 168.3 | 3 1/2 | 9. 5-12.2 | | 6 3/4 | 171.5 | 3 1/2 | 9. 5-12.2 | | 7 1/2 | 190.5 | 4 1/2 | 16. 3〜21. 7 | | 7 5/8 | 193.7 | 4 1/2 | 16. 3〜21. 7 | | 7 7/8 | 200 | 4 1/2 | 16. 3〜21. 7 | | 8 3/8 | 212.7 | 4 1/2 | 16. 3〜21. 7 | | 8 1/2 | 215.9 | 4 1/2 | 16. 3〜21. 7 | | 8 5/8 | 219.1 | 4 1/2 | 16. 3〜21. 7 | | 8 3/4 | 222.3 | 4 1/2 | 16. 3〜21. 7 | | 9 1/2 | 241.3 | 6 5/8 | 38〜43. 4 | | 9 5/8 | 244.5 | 6 5/8 | 38〜43. 4 | | 9 7/8 | 250.8 | 6 5/8 | 38〜43. 4 | | 10 1/2 | 266.7 | 6 5/8 | 38〜43. 4 | | 10 5/8 | 269.9 | 6 5/8 | 38〜43. 4 | | 11 | 279.4 | 6 5/8 | 38〜43. 4 | | 115/8 | 295.3 | 6 5/8 | 38〜43. 4 | | 12 | 304.8 | 6 5/8 | 38〜43. 4 | | 12 1/4 | 311.2 | 6 5/8 | 38〜43. 4 | | 12 5/16 | 312.7 | 6 5/8 | 38〜43. 4 | | 12 3/8 | 314.3 | 6 5/8 | 38〜43. 4 | | 12 7/16 | 315.9 | 6 5/8 | 38〜43. 4 | | 12 5/8 | 320.7 | 6 5/8 | 38〜43. 4 | | 13 1/8 | 333.4 | 6 5/8 | 38〜43. 4 | | 13 1/2 | 342.9 | 6 5/8 | 38〜43. 4 | | 13 5/8 | 346.1 | 6 5/8 | 38〜43. 4 | | 13 3/4 | 349.3 | 6 5/8 | 38〜43. 4 | |
4.Packaging & delivery:
Drilling bit tricone/quality chisel rock drill bits will be packed by wooden box or as your requirement

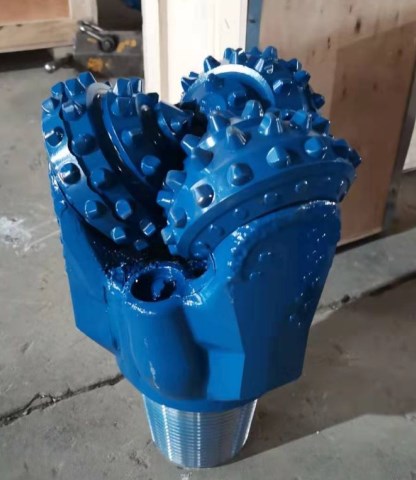

The Photo of products
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
