200m/300m/400m/600m Mobile Crawler Drilling Equipment Hydraulic Portable Borehole Water Drilling Machine

Glorytek Industry (Beijing) Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

200m/300m/400m/600m Mobile Crawler Drilling Equipment Hydraulic Portable Borehole Water Drilling Machine

  • 1
  • 2

Brand Name : GLORYTEK

Model Number : GL400S

Certification : CE,SGS,TUV

Place of Origin : China

MOQ : 1 sets

Price : To be negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets per month

Delivery Time : 20 workdays

Packaging Details : standard exporting packing

Overall Dimensions : 5.4m x 1.7m x 2.35m

Keyword : DTH Water Well Drill Rig

Drill Rig Power : Diesel Generator

Drill Rod Dia : 76/89/102/114mm

Working Air Pressure : 1.25-3.5MPa

Drilling Pipe Length : 3m/6m

Diesel Engine : 90KW-6 Cylinders

Power Source : Diesel Engine

Rotary Speed : 30/170r/min

Drilling Depth : 400m

Drilling Way : Rotary

Power Type : Diesel

Contact Now

DTH Crawler Drilling Rig for Water Bore Drilling Driven by Diesel Engine

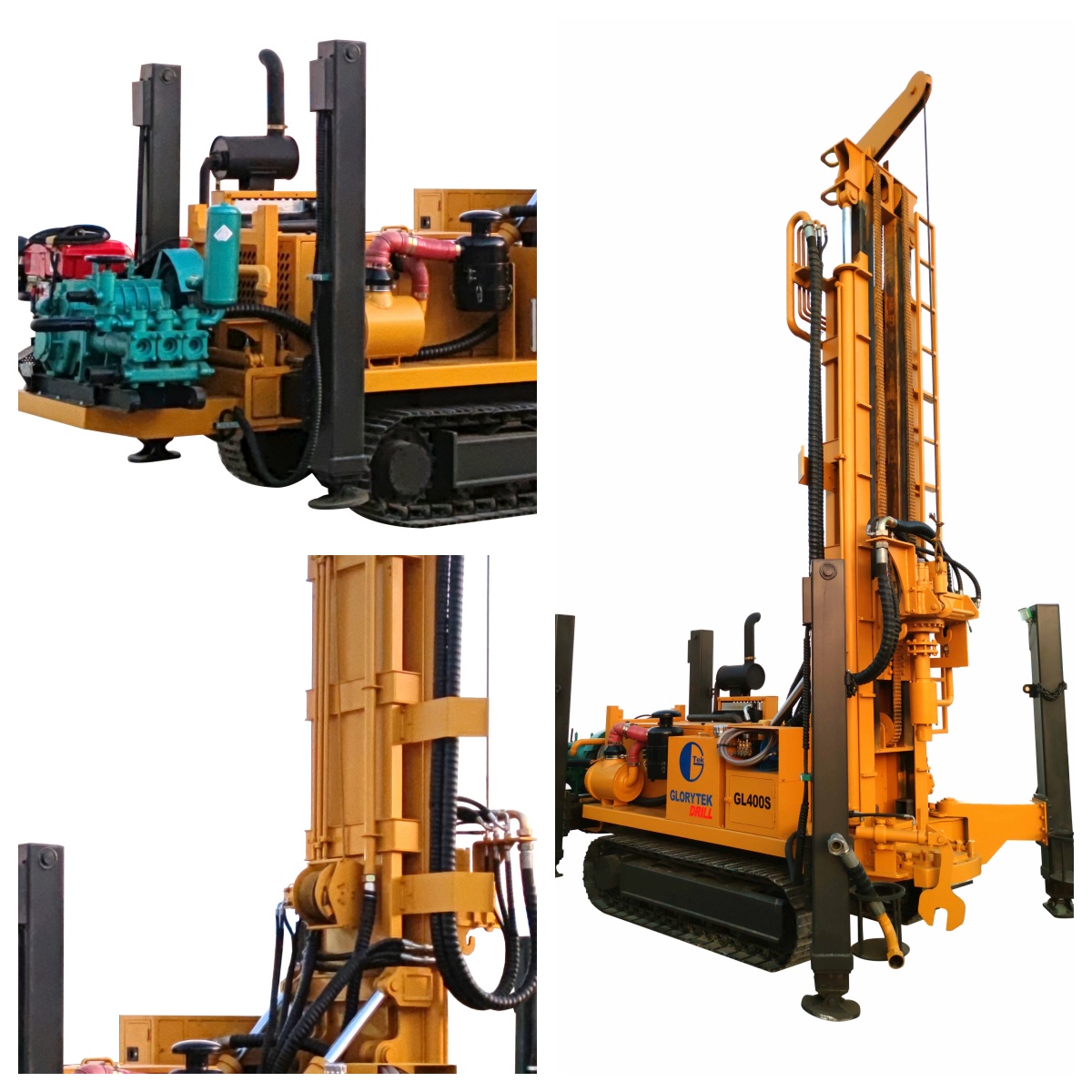

Drilling Rig Show:
200m/300m/400m/600m Mobile Crawler Drilling Equipment Hydraulic Portable Borehole Water Drilling Machine
Description of GL-400S:

It is a high efficiency and multi-functional DTH pneumatic water well drilling machine.

This water drilling rig is two motors, top head rotary driving ,it can work with both mud pump and air compressor

This water drilling machine can drill max 400m depth 105-350mm diameter,it use 85KW diesel engine,it can drill hard rock ,clay ,soil ,sandy etc different stratume.

This borehole drilling rig is hydraulic rubber crawler mounted ,very easy convenient to move.It has four high hydraulic legs with 1.7m ,it is very convenient to transport by truck.

Feature:

Our Steel Crawler Mounted Water Well Drilling Rig, including 100m, 150m, 200m, 300m, 350m, and 600 meters, our drilling rig can meet your specific requirements.


The drilling rig adopts full hydraulic control, and the top drive drives the drilling tool to rotate, resulting in very high drilling efficiency.


The overall layout is reasonable, using tractor mounted or all ground chassis transportation, with good mobility.


It is very flexible on difficult roads and can be widely used in resource exploration fields such as hydrological wells, coalbed methane, shallow shale gas, geothermal energy, etc., as well as in coal mine gas mining and salvage work.

Specifications:
(For reference,more details please contact us)

Technical Parameter
Max drilling depth 400m
Drilling diameter 105-350mm
Air pressure 1.25-3.5Mpa
Air consumption 16-55m³/min
Rod length 3m/6m
Rod diameter 76/89/102/114mm
Main shaft pressure 6T
Lifting force 28T
Fast lifting speed 24m/min
Fast forwarding speed 50m/min
Rotary torque 10000 N.M
Rotary speed 30/170r/min
Winch lifting force 3T
High leg stroke 1.5m
Drilling efficiency 10-35m/h
Moving speed 2.5Km/h
Uphill angle 21°
Weight of the rig 9.2T
Dimension 5.4m x 1.7m x 2.35m
Working condition loose layer or bedding rock
Drilling method Top Hammer Hydraulic Rotating and feeding,
Down the hole hammer or mud pump drilling
Suitable hammer Medium and high pressure DTH hammer
Optional accessories Mud pump, centrifugal pump, generator, foam pump
Diesel Engine 90KW-6 Cylinders

Working Draw
200m/300m/400m/600m Mobile Crawler Drilling Equipment Hydraulic Portable Borehole Water Drilling Machine

This water drilling machine is mainly used for irrigation well drilling, home drinking water drilling, geothermal well drilling, hydrology wells drilling, civil using water well drilling, industry well drilling, etc water drilling projects.

Related Product
Support air drilling or mud drilling equipment and drilling tools.
Our Steel Crawler Mounted Water Well Drilling Rig, including 100m, 150m, 200m, 300m, 350m, and 600 meters, our drilling rig can meet your specific requirements. Full hydraulic drilling rig mainly used to drilling wells,irrigation wells,ground source heating pump wells and boreholes for other purposes,especially for mountain and rock formation well projects.The rig can be drill in different layers.

200m/300m/400m/600m Mobile Crawler Drilling Equipment Hydraulic Portable Borehole Water Drilling Machine
