Versatile and Advanced Borehole and Underwater Inspection Cameras for Drilling Rig Tools
Product Description:
Designed and manufactured for well inspectors, drillers, hydrogeologists and other professionals who need to view the condition of wells, drains, boreholes, vertical wells and open water.

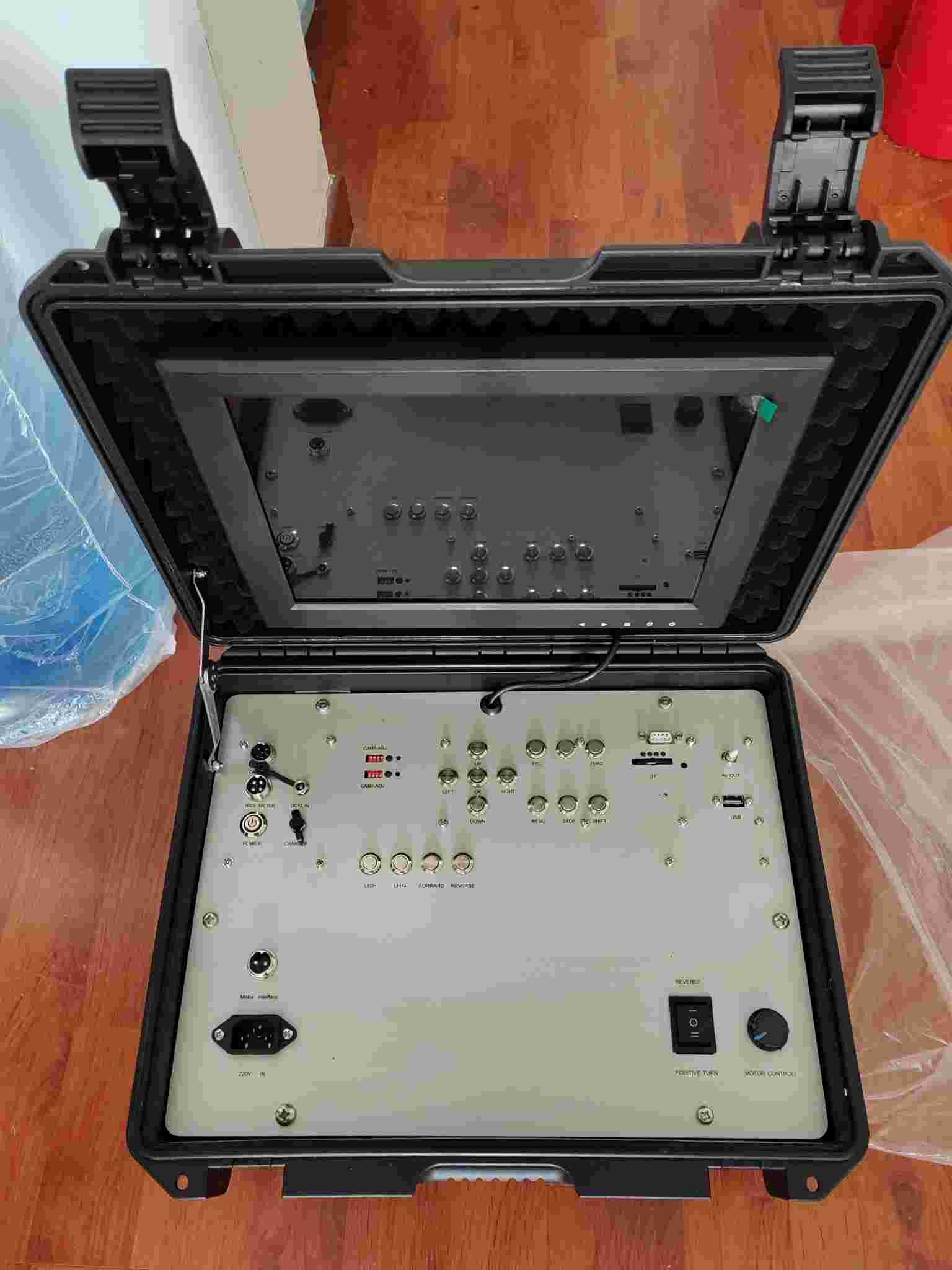

●Main control box
*APS main control box, size: 415 * 340 * 144*Voltage input: 12V / 220V
*Depth interface: connect depth sensor
*Probe interface: connect the probe to transmit video and power
*Display: 12 inch bright LED display for outdoor viewing
*It can record, capture photos and input by keyboard
*The USB flash disk stores video files and can be played back on site.
*Video 8 times magnification.
*One click switching video display
●Monitor
*12 inch BNC / VGA / HDMI / USB industrial control display:
*Size 280 × one hundred and eighty x 40mm
*Aspect ratio: 16:10
*Contrast: 450:1
*Brightness: 500CD / m2
*Resolution: 1280 * 800
●Winch
*Manual winch or electric winch (optional)
*Winch: stamping reinforced wire stop reel
*Winch frame: aluminum profile, iron (optional)
●Dual camera
*Camera material: 304 stainless steel
*Camera size: Φ 73mm
*Camera lens material: front high transparent quartz glass Side end quartz glass effectively prevents abrasion
*Camera pixel: Sony CCD camera
*Lens angle: 120 degrees
*Camera lamp: front highlight LED lamp bead, side mounted LED strong light source lamp bead (adjustable brightness)
*Probe withstand voltage: withstand voltage 20MPa, and the maximum withstand voltage depth can reach 2000m
*The side camera can rotate 360 degrees forward and backward indefinitely
Technical Parameters:
| Downhole television imager | | Main control box | 12V/220V | | Winch | Electric manual winch (optional) | | display | 12 inch high brightness industrial control display | | Video recording system | 32g (USB flash disk) | | Dual camera probe | The 73mm diameter dual camera underground TV adopts the Japanese Sony 1200 line low illumination camera, with unrestricted horizontal rotation of 360 degrees.
Free control of forward and reverse rotation, adjustable light brightness, and a uniform light cover is added to make the light more uniform and prevent the occurrence of reflection.
The U disk saves videos, pictures,high-precision depth meter and on-site playback.
Toughened glass is used at the front and side ends to effectively prevent abrasion and greatly improve the definition of the camera.
| | Downhole pulley | Precision count | | Logging cable | Tensile length 0-2000m (optional) | | | | | hold-all | Connecting cables and accessories | | |
Packing&Delivery:
Packing: Non-fumigation wooden box.
Delivery: Normally 7-10 days after your down payment. Shipping by sea, air or express are all available.
